Frame	800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142×12 mm thru axle
Fork	Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12×100 mm thru axle

Wheels

Wheel front	Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle
Wheel rear	Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142×12 mm thru axle
Skewer front	Bontrager Switch thru-axle, removable lever
Skewer rear	Bontrager Switch thru-axle, removable lever
Tyre	Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700×25 mm
Max tyre size	32 mm (as measured, see manual for details)

E-system

Battery	SRAM eTap battery pack (with charger)

Drivetrain

Shifter	SRAM Force AXS D2, 12-speed
Front derailleur	SRAM Force AXS D2, braze-on
Rear derailleur	SRAM Force AXS D2, 36T max cog
*Crank	Size: 47 SRAM Force AXS D2, power meter, 48/35, DUB, 165 mm length
	Size: 50, 52 SRAM Force AXS D2, power meter, 48/35, DUB, 170 mm length
	Size: 54, 56, 58 SRAM Force AXS D2, power meter, 48/35, DUB, 172.5 mm length
	Size: 60, 62 SRAM Force AXS D2, power meter, 48/35, DUB, 175 mm length
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM Force XG-1270, 10-33, 12 speed
Chain	SRAM Force, 12-speed
Max. chainring size	1x: 50T, 2x: 54/40

Components

*Saddle	Size: 47, 50, 52 Bontrager Aeolus Elite, austenite rails, 155 mm width
*Saddle	Size: 54, 56, 58, 60, 62 Bontrager Aeolus Elite, austenite rails, 145 mm width
*Seatpost	Size: 47, 50, 52, 54 Madone aero carbon seat post, 0 mm offset, short length
*Seatpost	Size: 56, 58, 60, 62 Madone aero carbon seat post, 0 mm offset, long length
*Handlebar/stem (integrated)	Size: 47 Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
	Size: 50, 52 Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
	Size: 54 Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
	Size: 56, 58 Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
	Size: 60, 62 Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape	Bontrager Supertack Perf tape
Brake	SRAM Force AXS hydraulic disc
Brake rotor	SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size	Max brake rotor sizes: 160 mm front and rear

Weight

Weight	56 – 7.85 kg/17.31 lb (with tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer’s suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

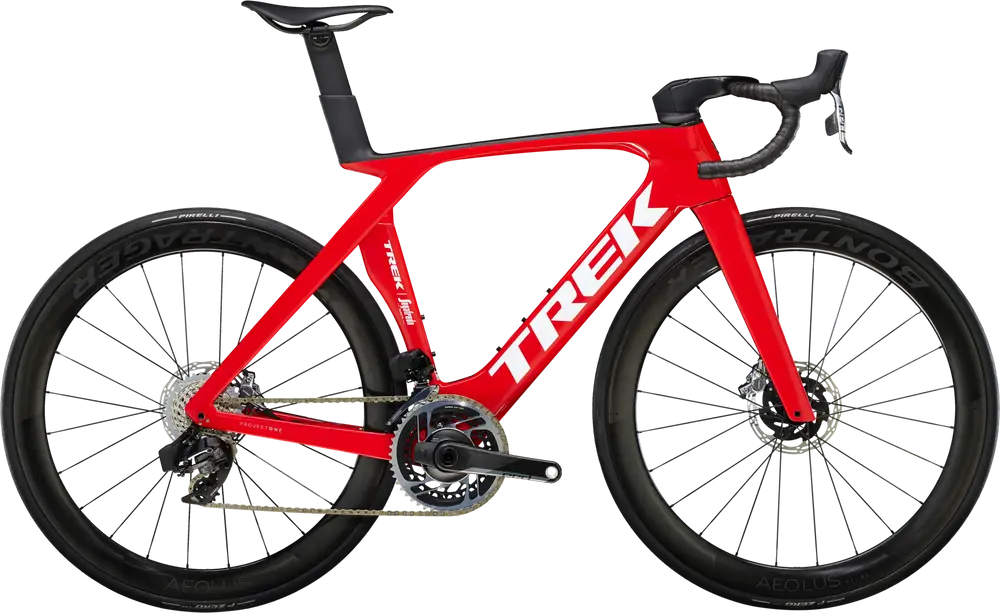

Madone SLR 7 AXS
