Frame	900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheels

Wheel front	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
Wheel rear	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
*Tire	Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm
*Tire	Size: XS, S, M, ML, L, XL Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm
Tire part	Bontrager TLR sealant, 6oz
Max tire size	32mm (as measured, see manual for details)

E-system

Battery	Shimano BT-DN300
Charger	Charging cable included

Drivetrain

Shifter	Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur	Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur	Shimano Dura-Ace R9250 Di2, 34T max cog
*Crank	Size: XS, S Shimano Dura-Ace R9200, 52/36, 165mm length
	Size: M Shimano Dura-Ace R9200, 52/36, 170mm length
	Size: ML, L Shimano Dura-Ace R9200, 52/36, 172.5mm length
	Size: XL Shimano Dura-Ace R9200, 52/36, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano Dura-Ace R9200, 11-30, 12 speed
Chain	Shimano Dura-Ace/XTR M9100, 12 speed
Max chainring size	1x: 54T, 2x: 56/43

Components

*Saddle	Size: XS, S Aeolus RSL, carbon rails, 155mm width
*Saddle	Size: M, ML, L, XL Aeolus RSL, carbon rails, 145mm width
*Seatpost	Size: XS, S, M Madone aero carbon seatpost, 0mm offset, short length
*Seatpost	Size: ML, L, XL Madone aero carbon seatpost, 0mm offset, long length

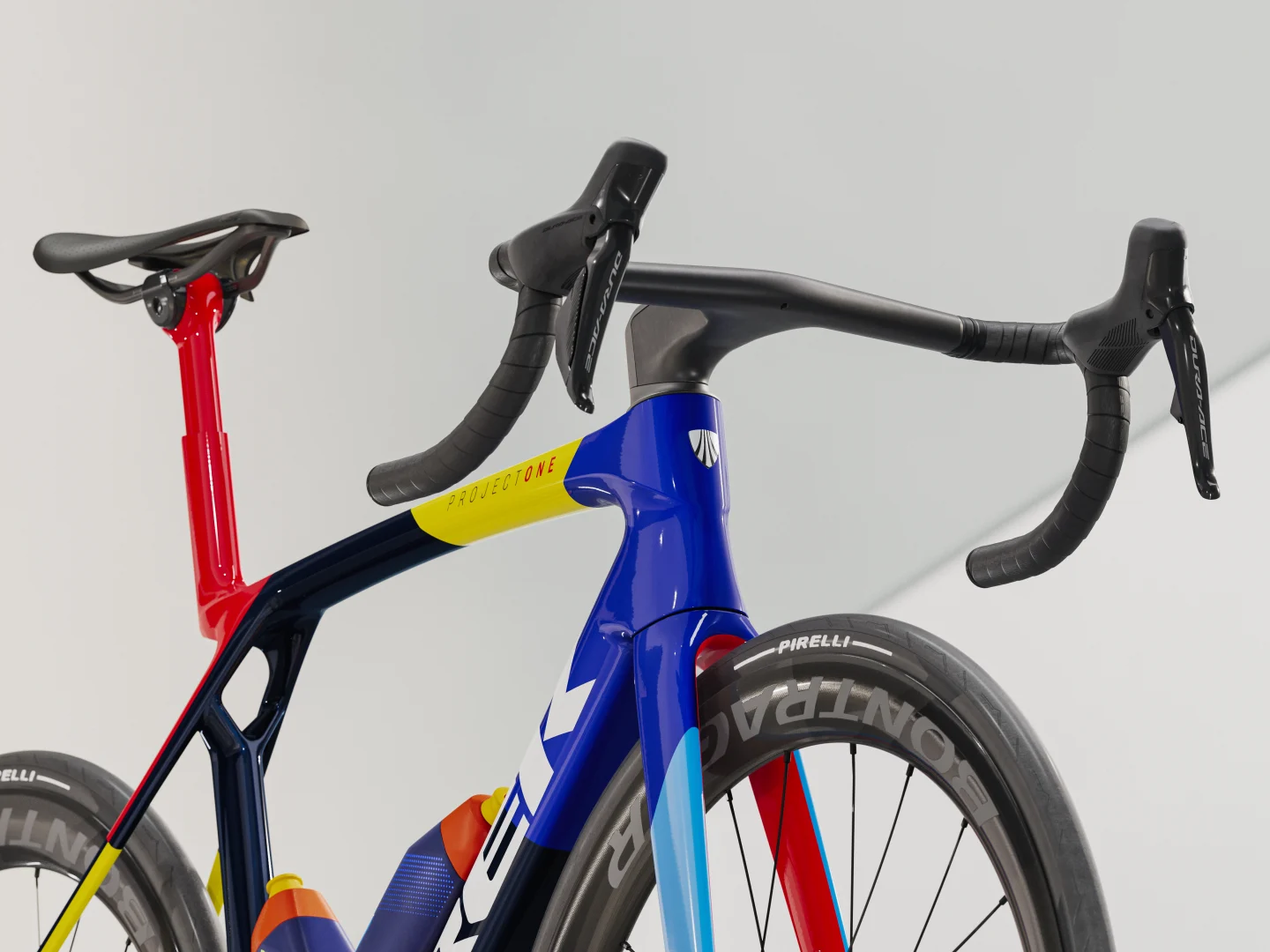

*Handlebar/stem (integrated)	Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
	Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
	Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
	Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
	Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
Rotor size	Max brake rotor sizes: 180mm front, 160mm rear

Weight

Weight	ML – 7.05 kg / 15.55 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer’s suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

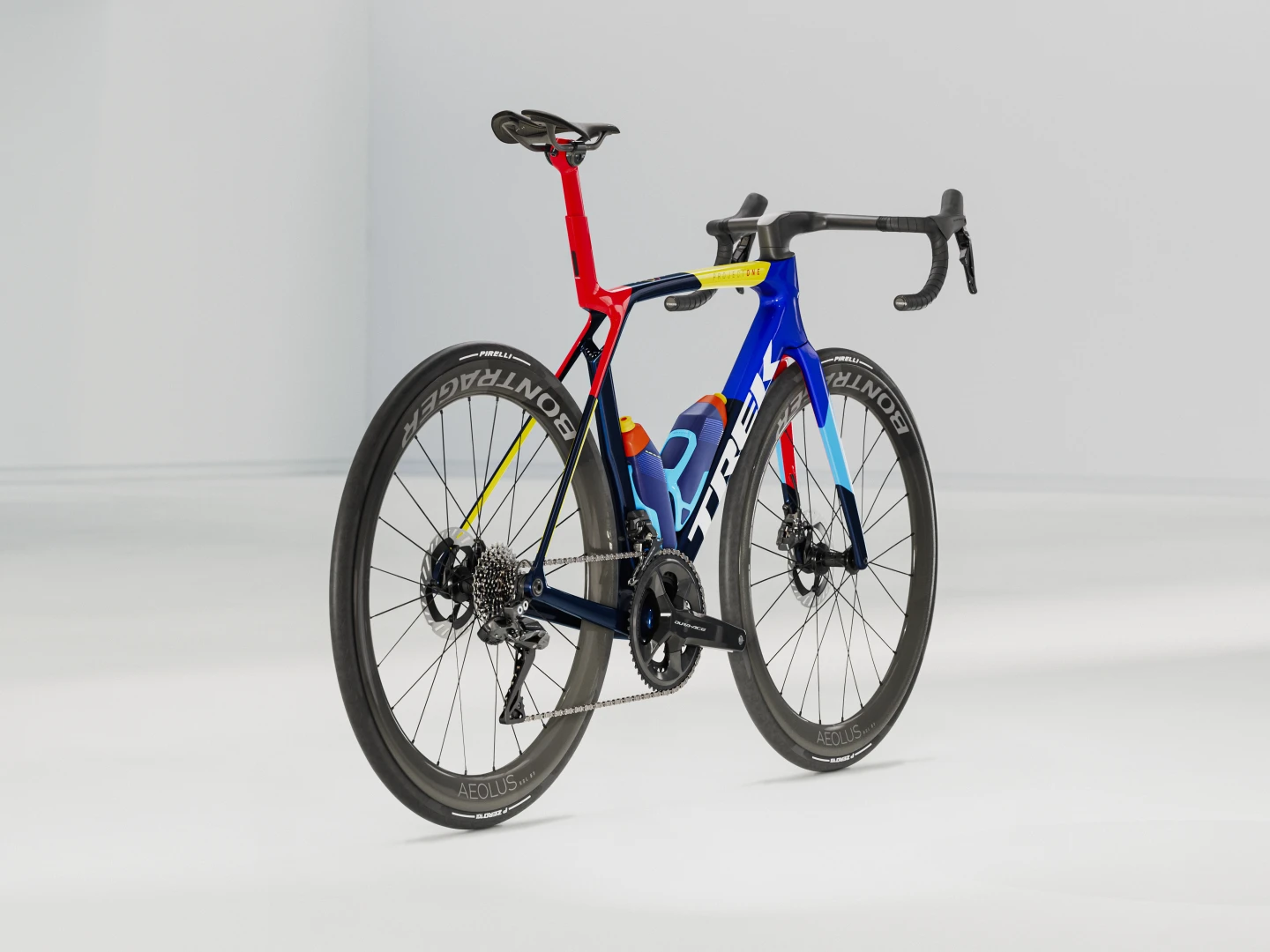

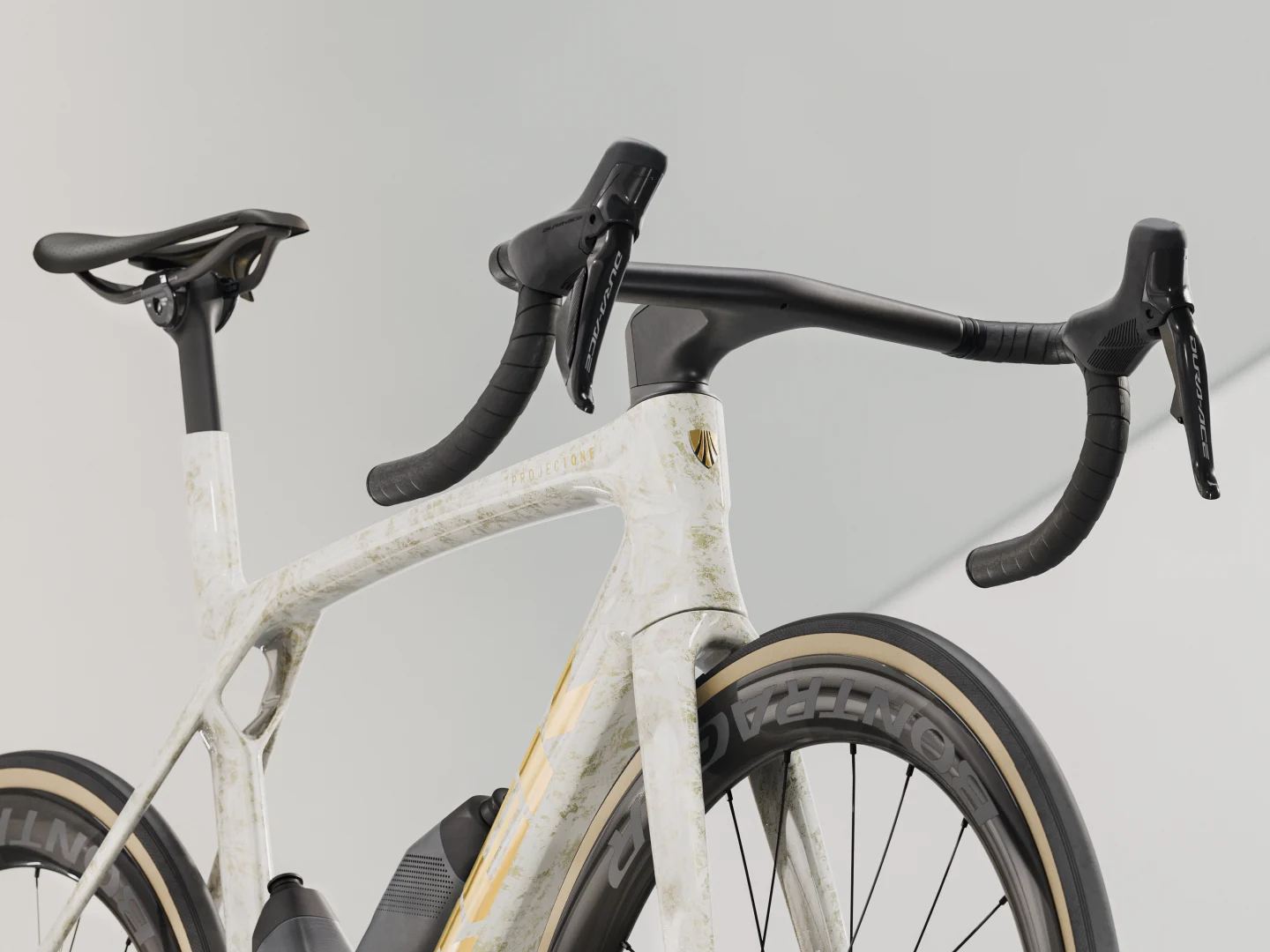

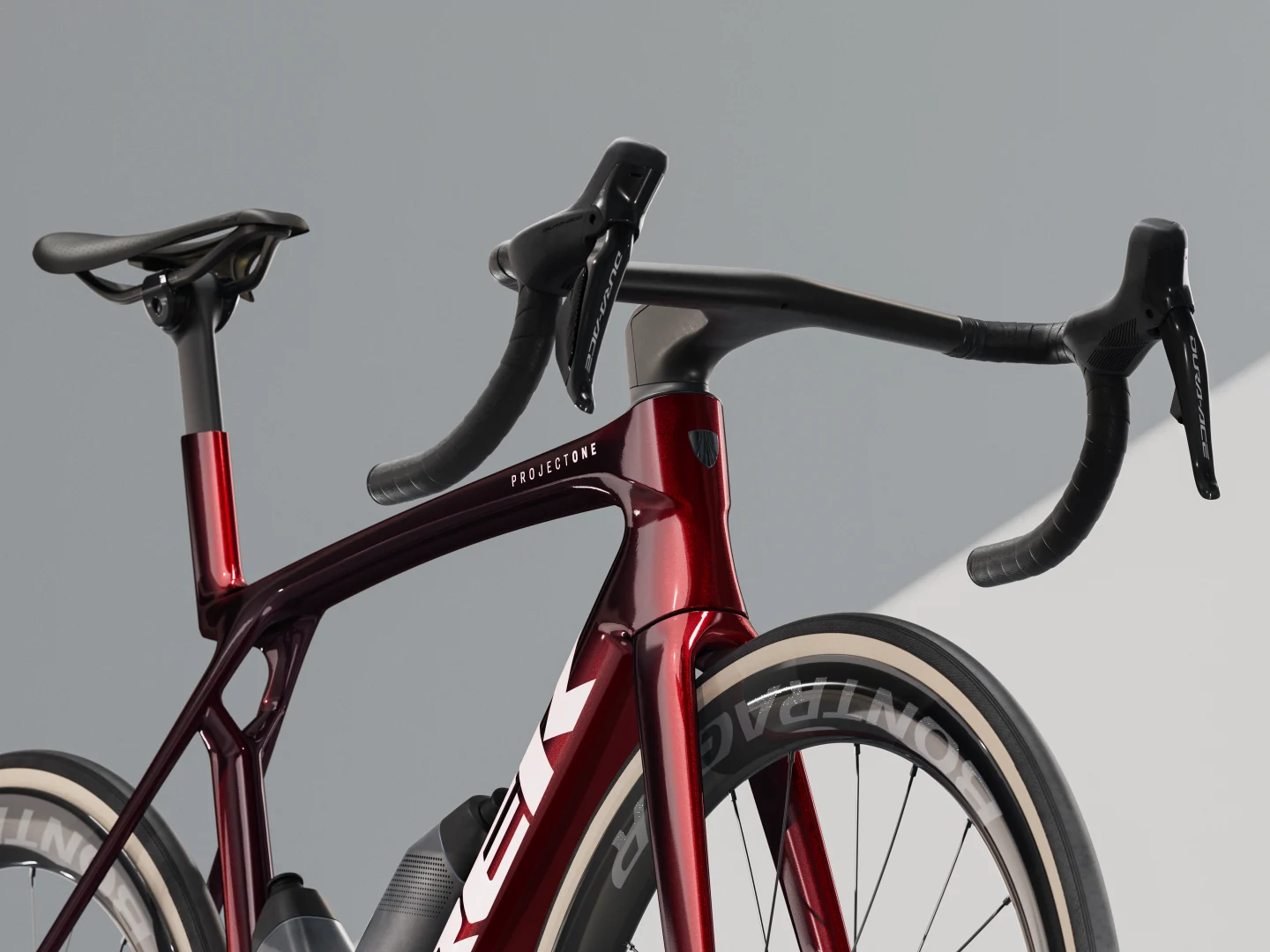

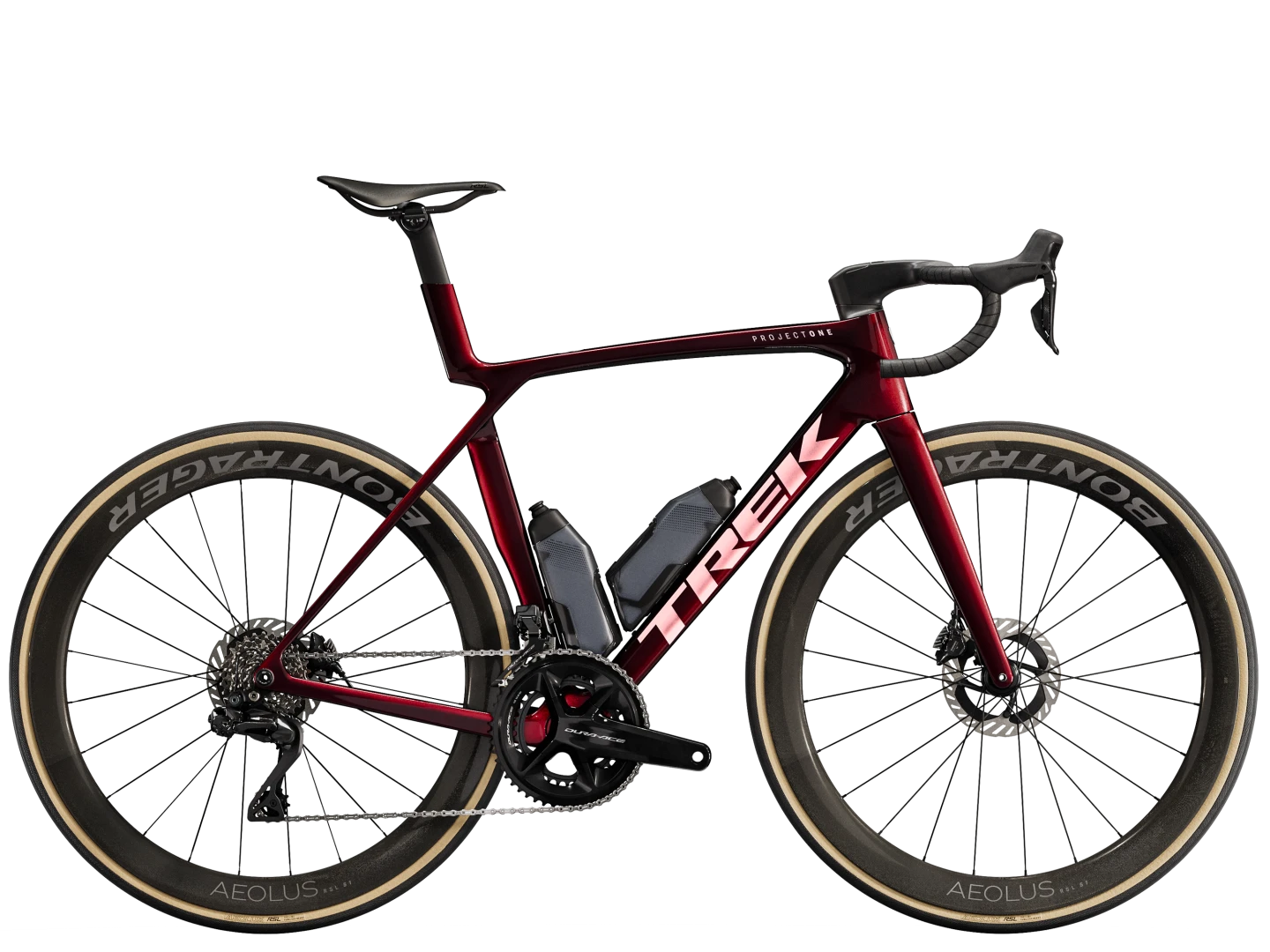

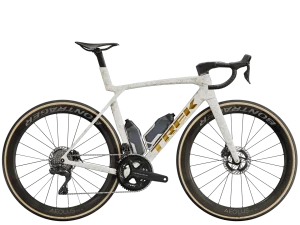

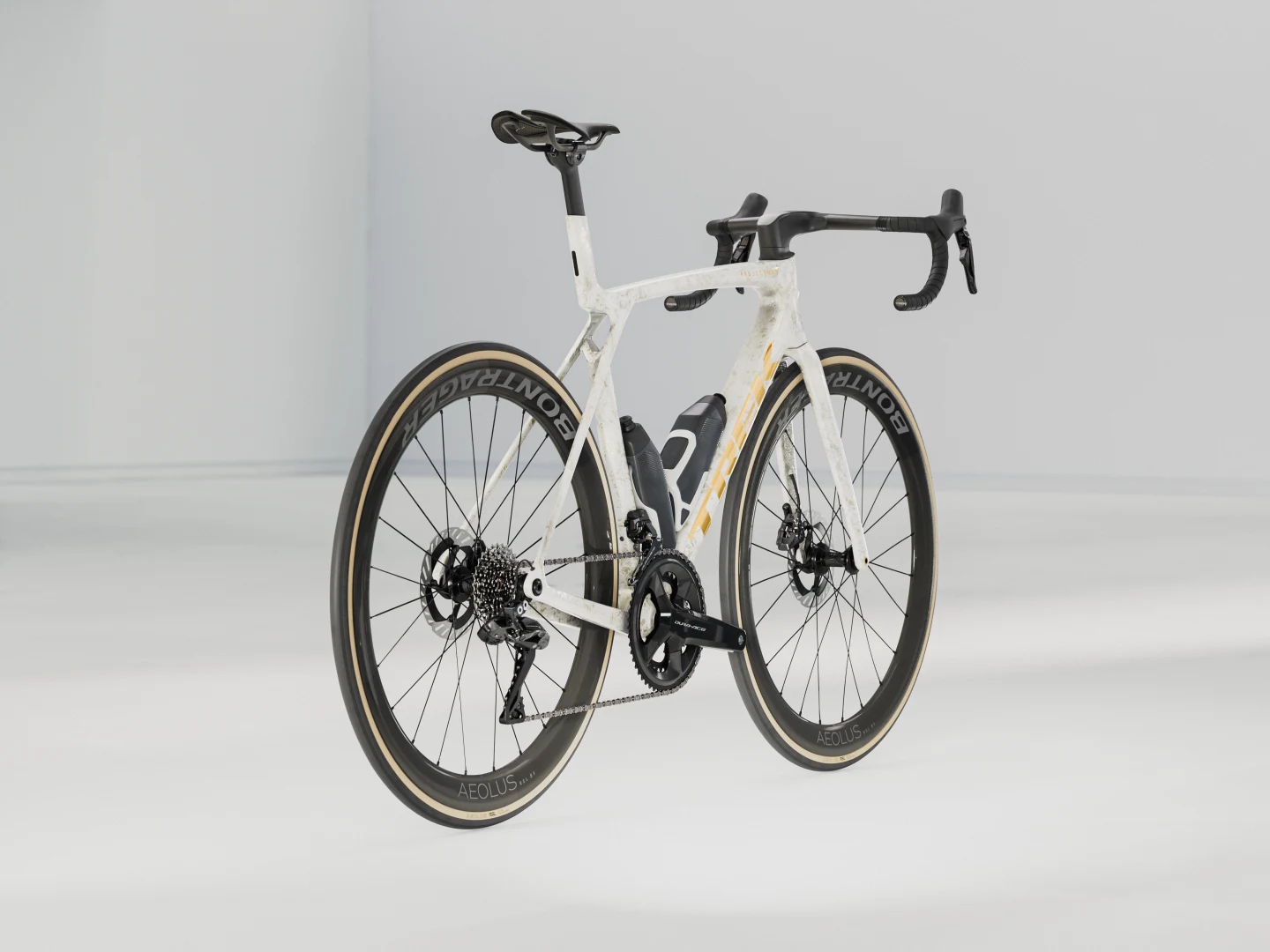

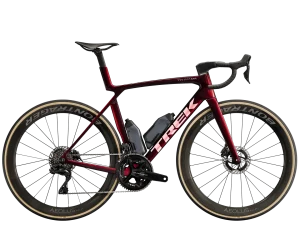

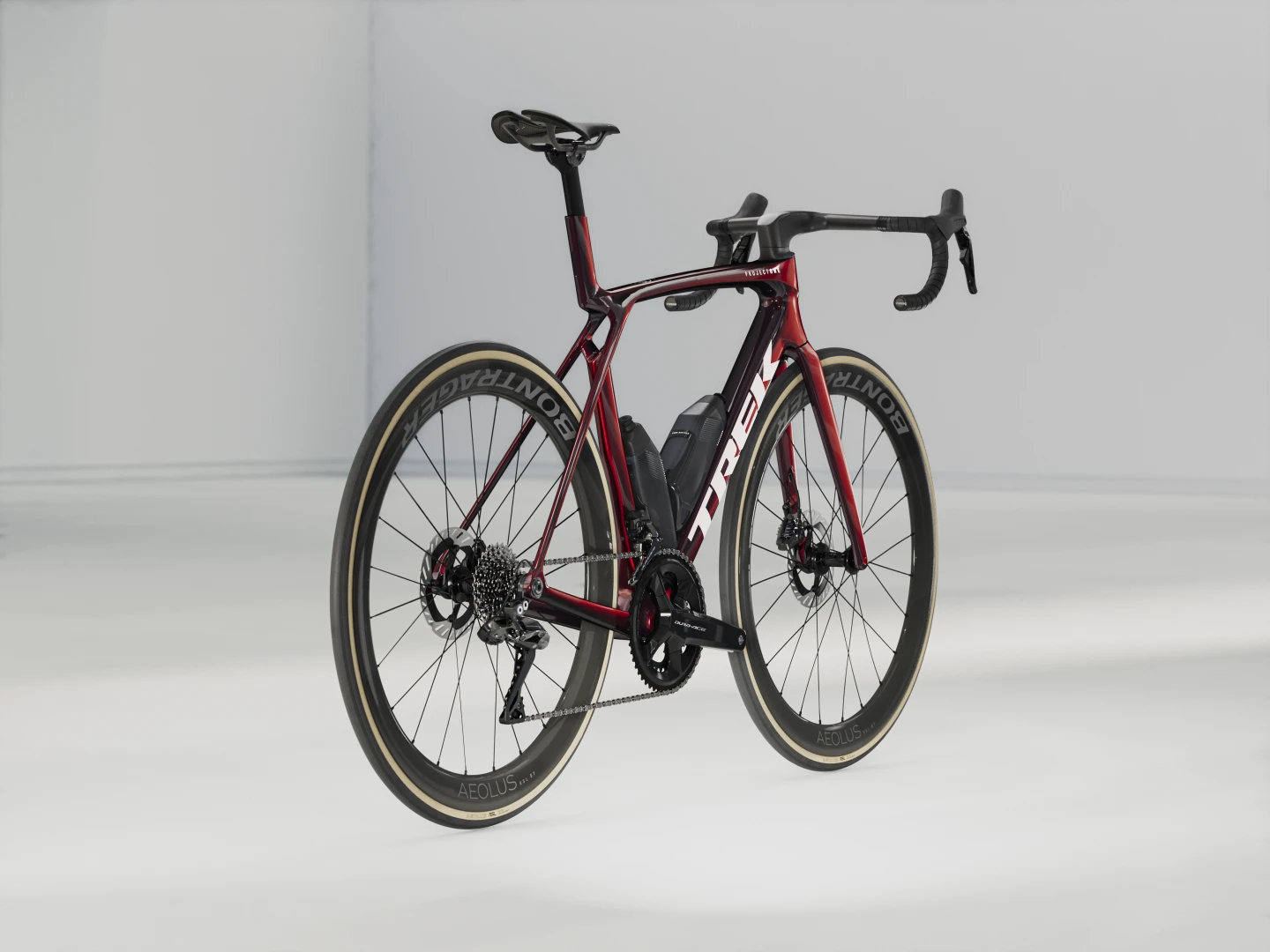

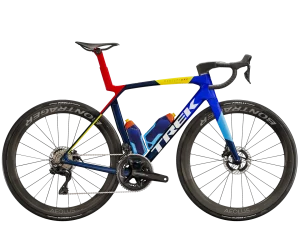

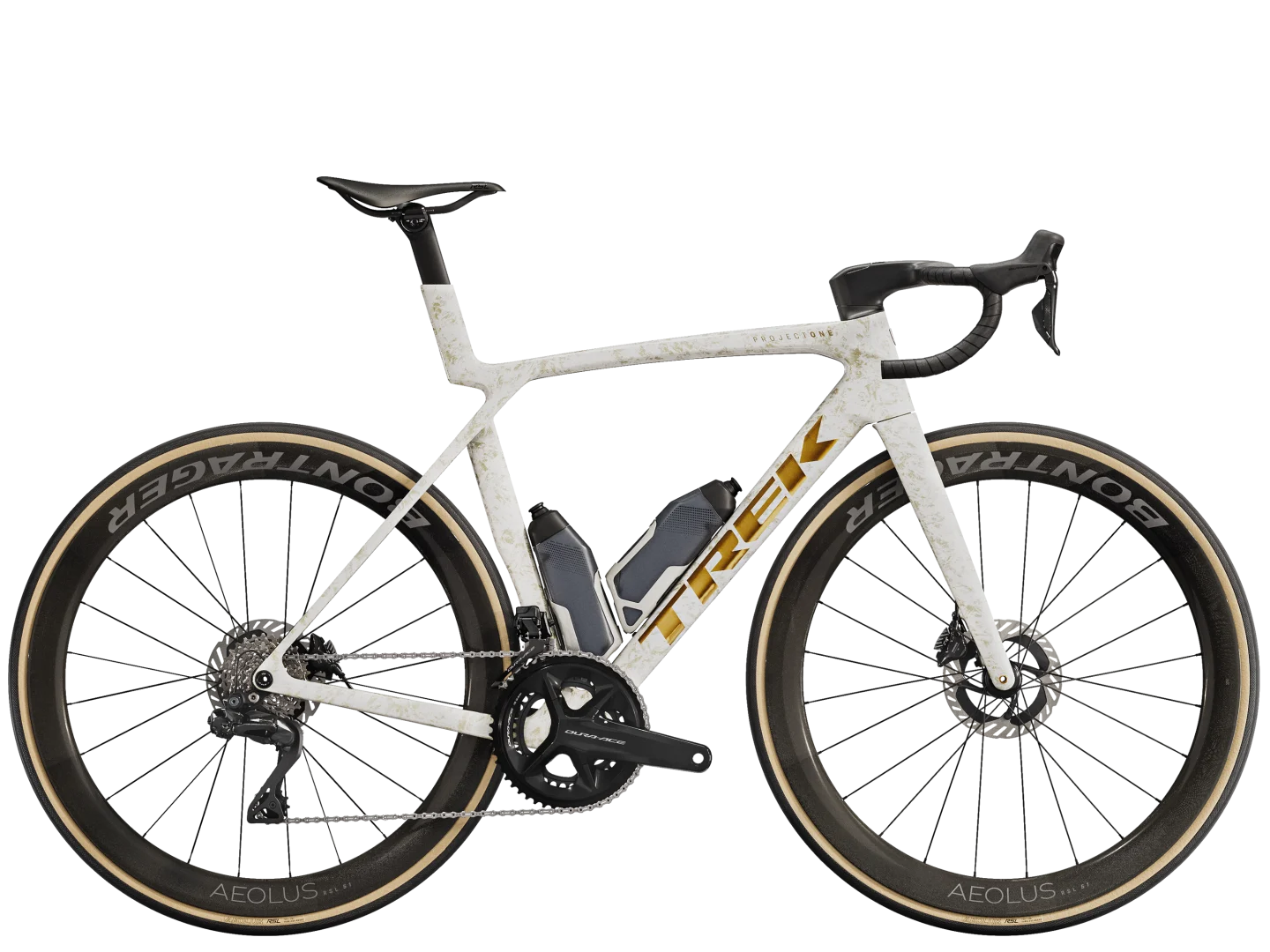

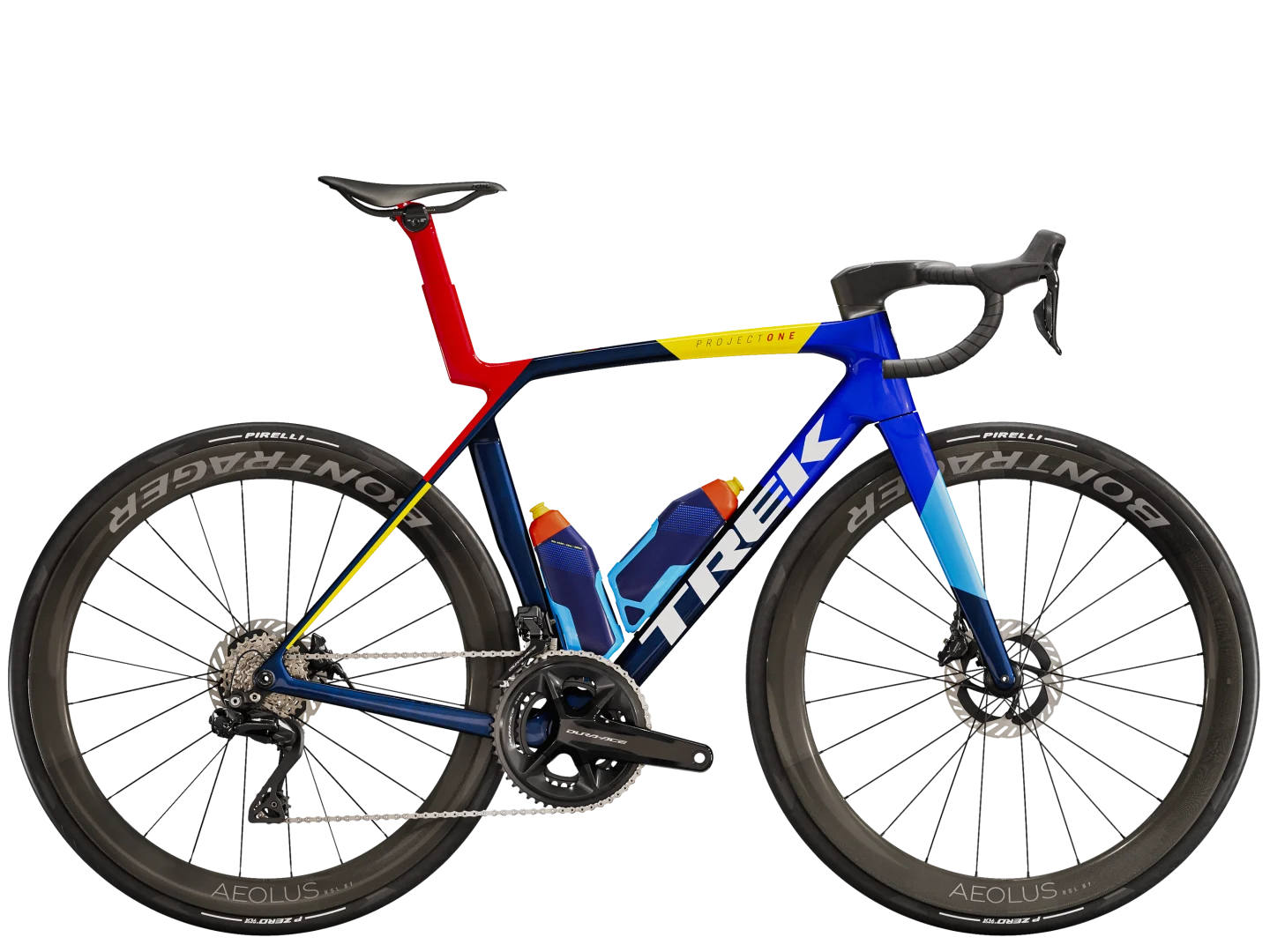

Madone SLR 9 Gen 8
