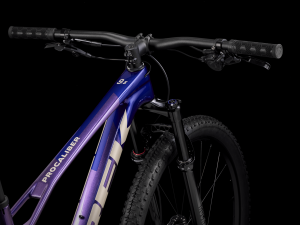

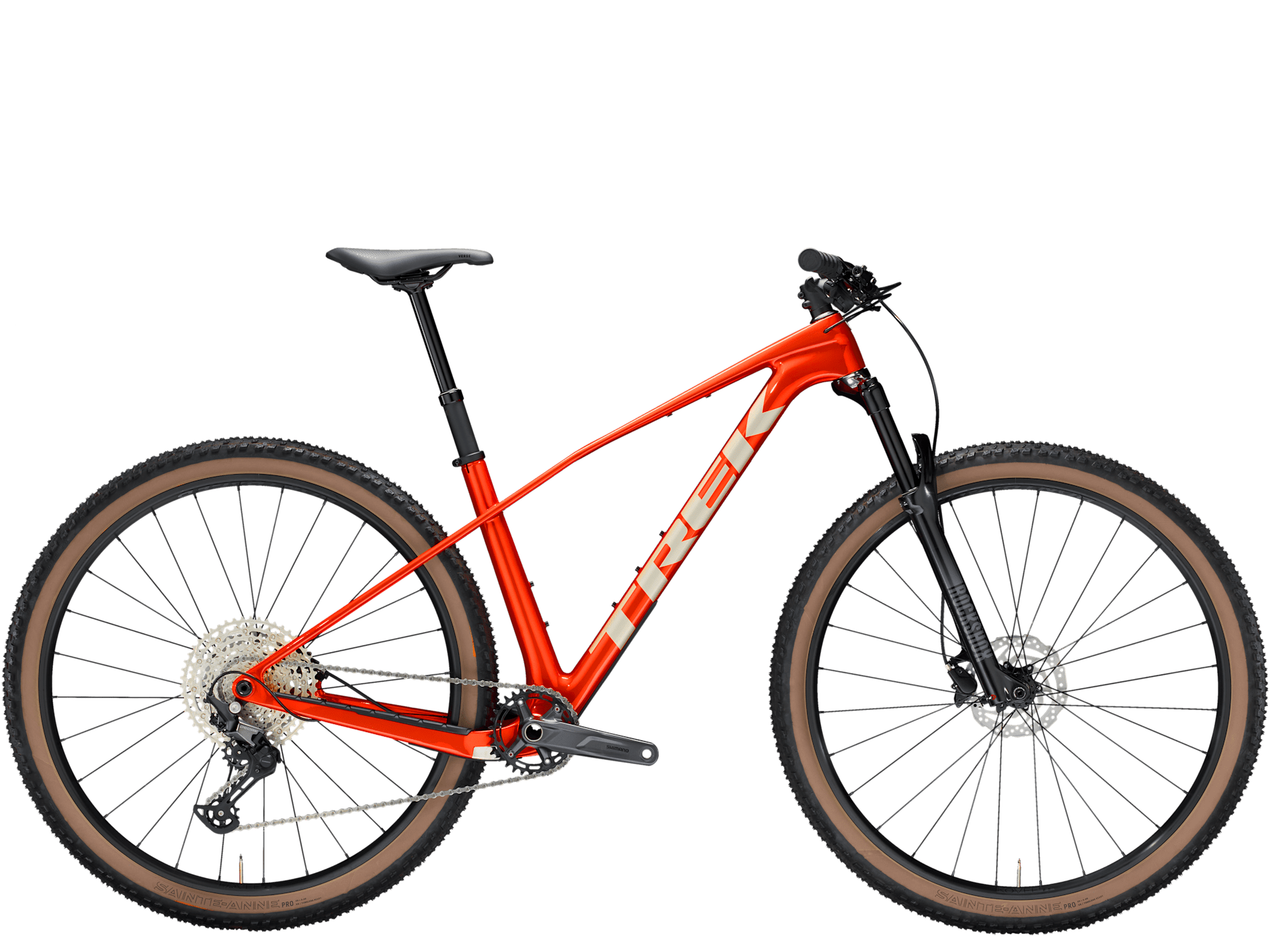

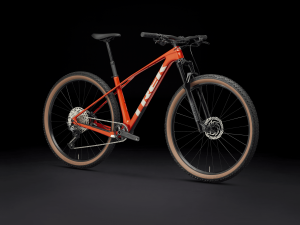

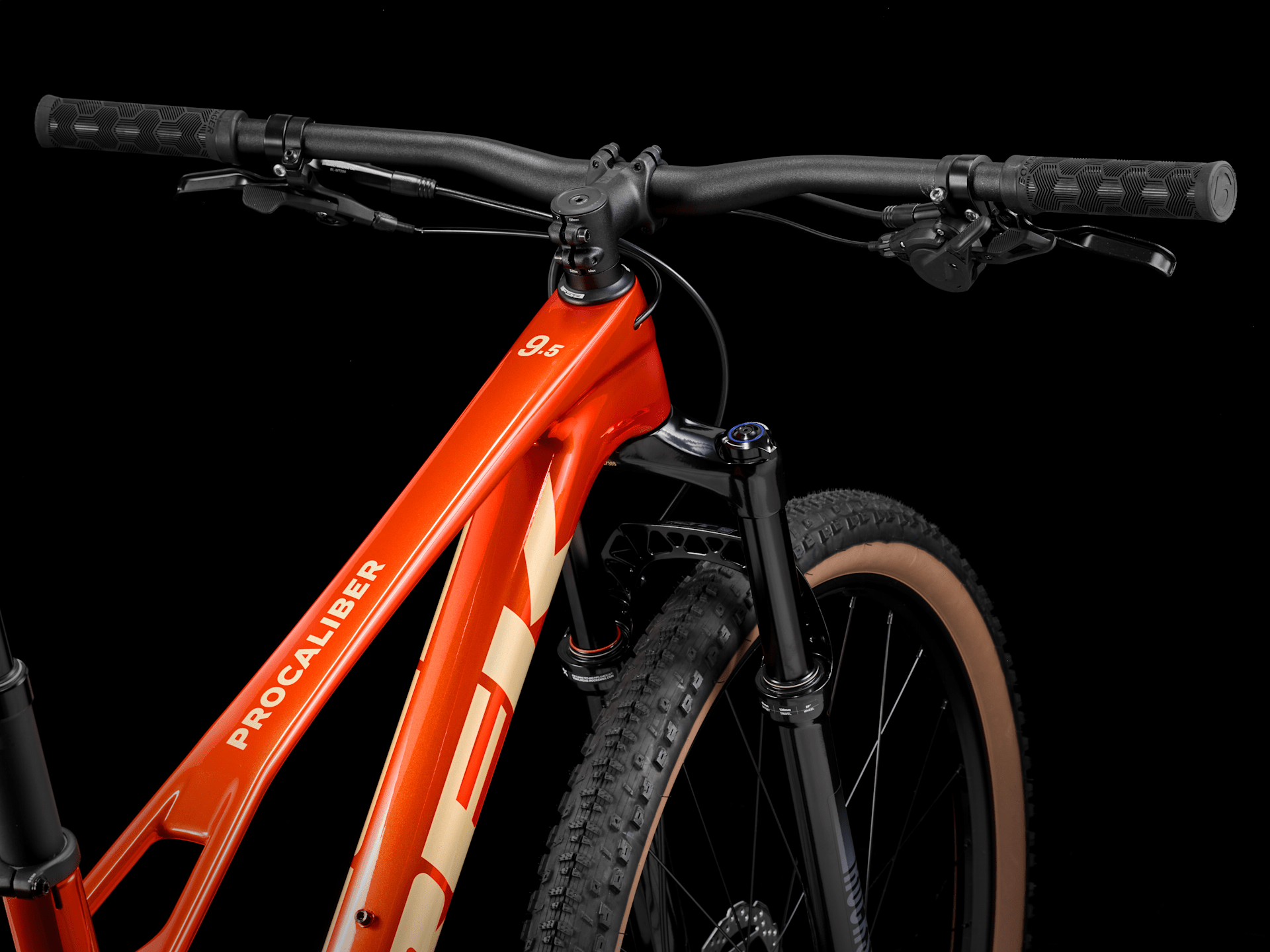

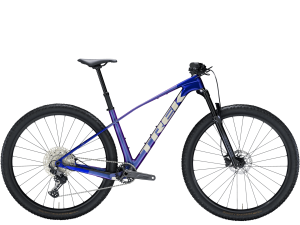

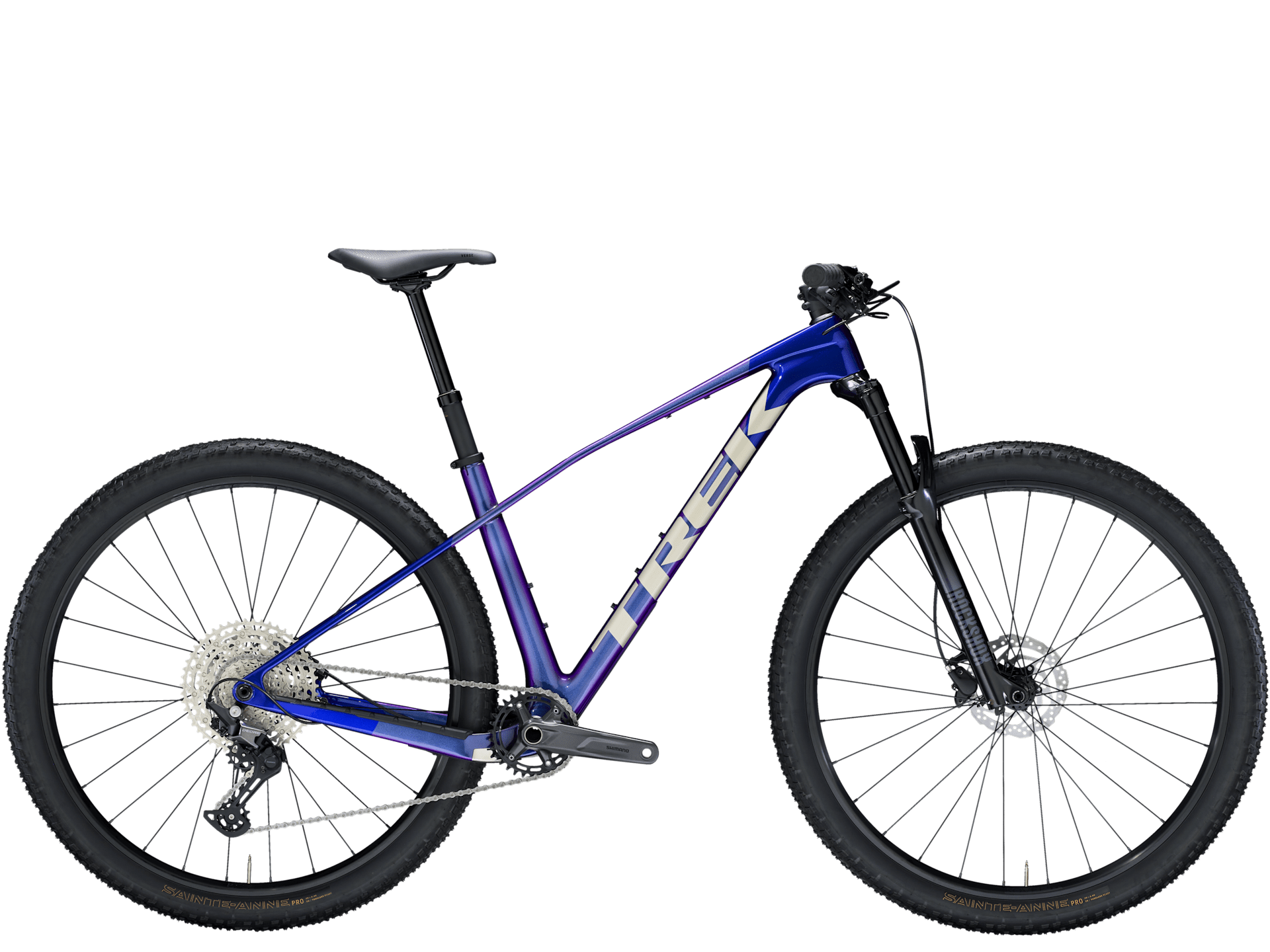

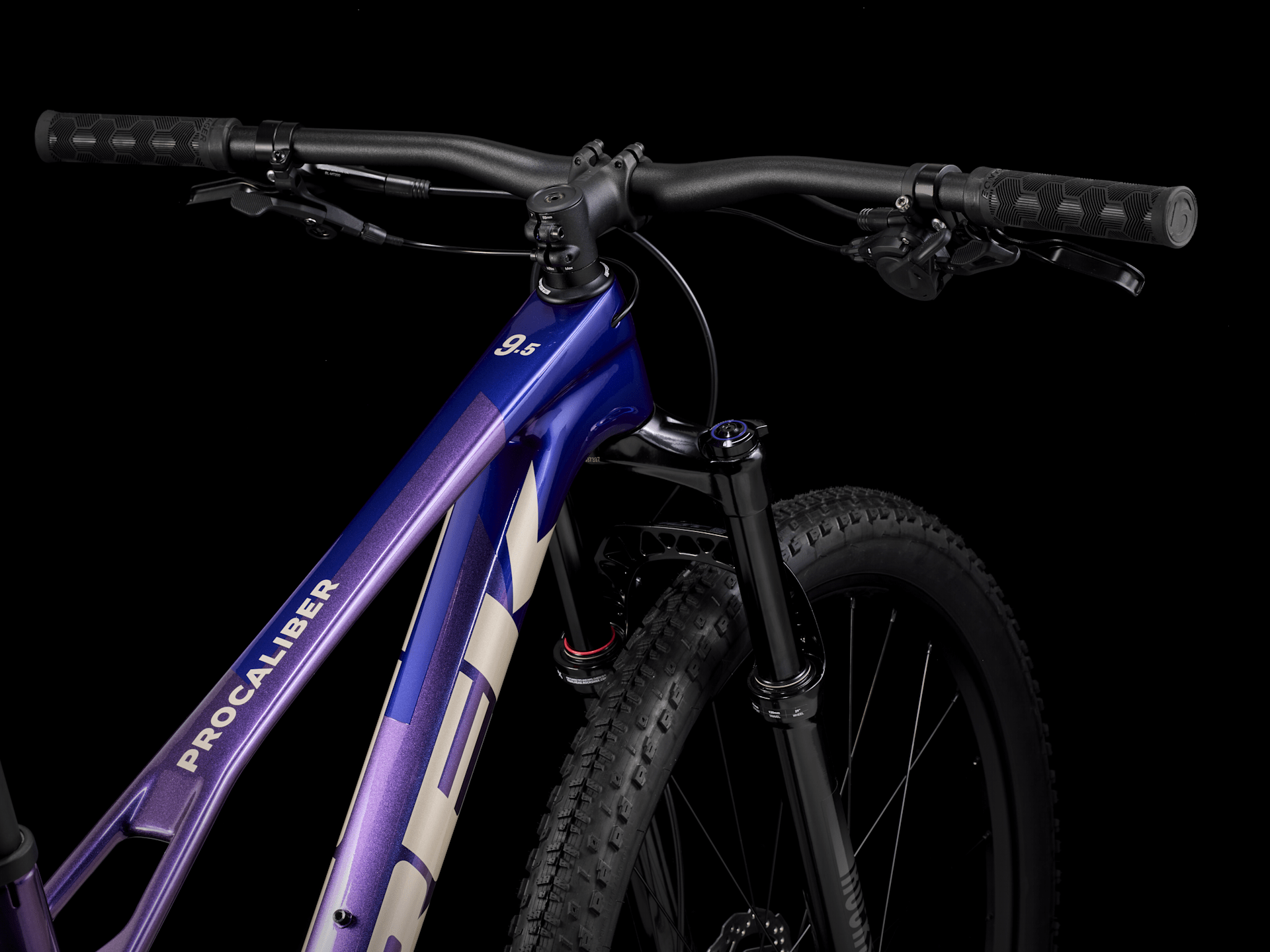

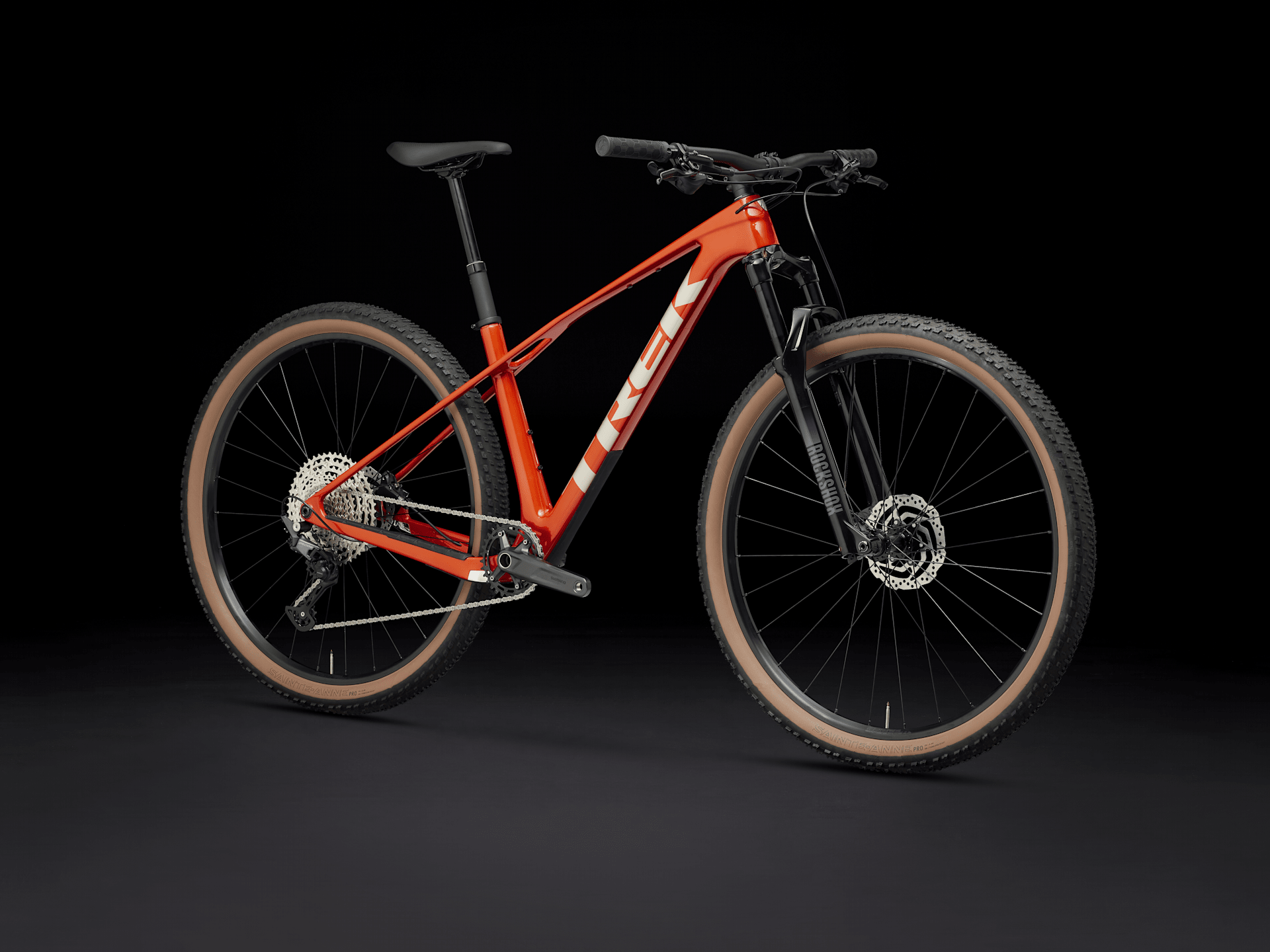

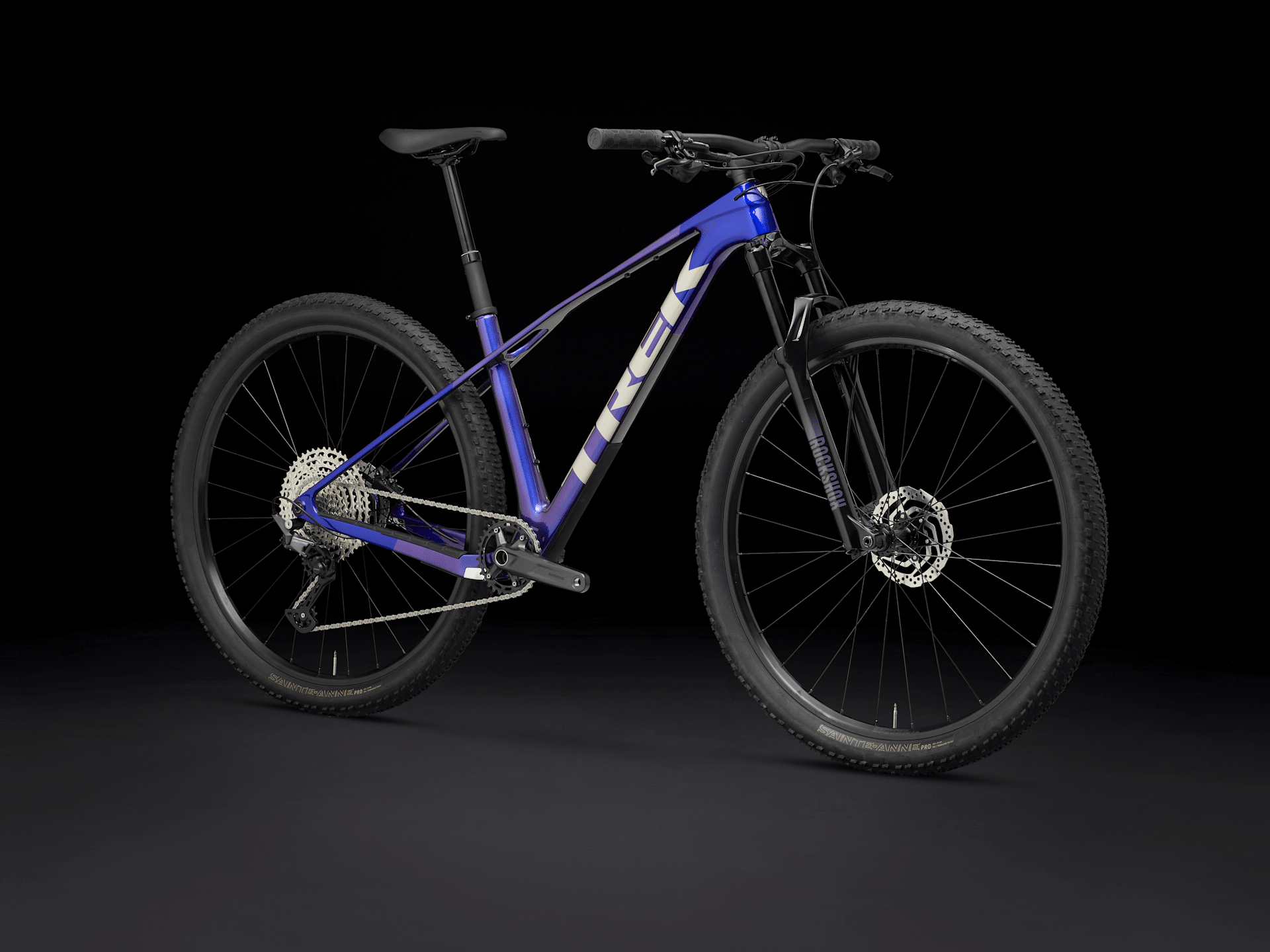

Name: TREK Procaliber 9.5 Gen 3 [2025]
SKU: 1284
Availability: InStock

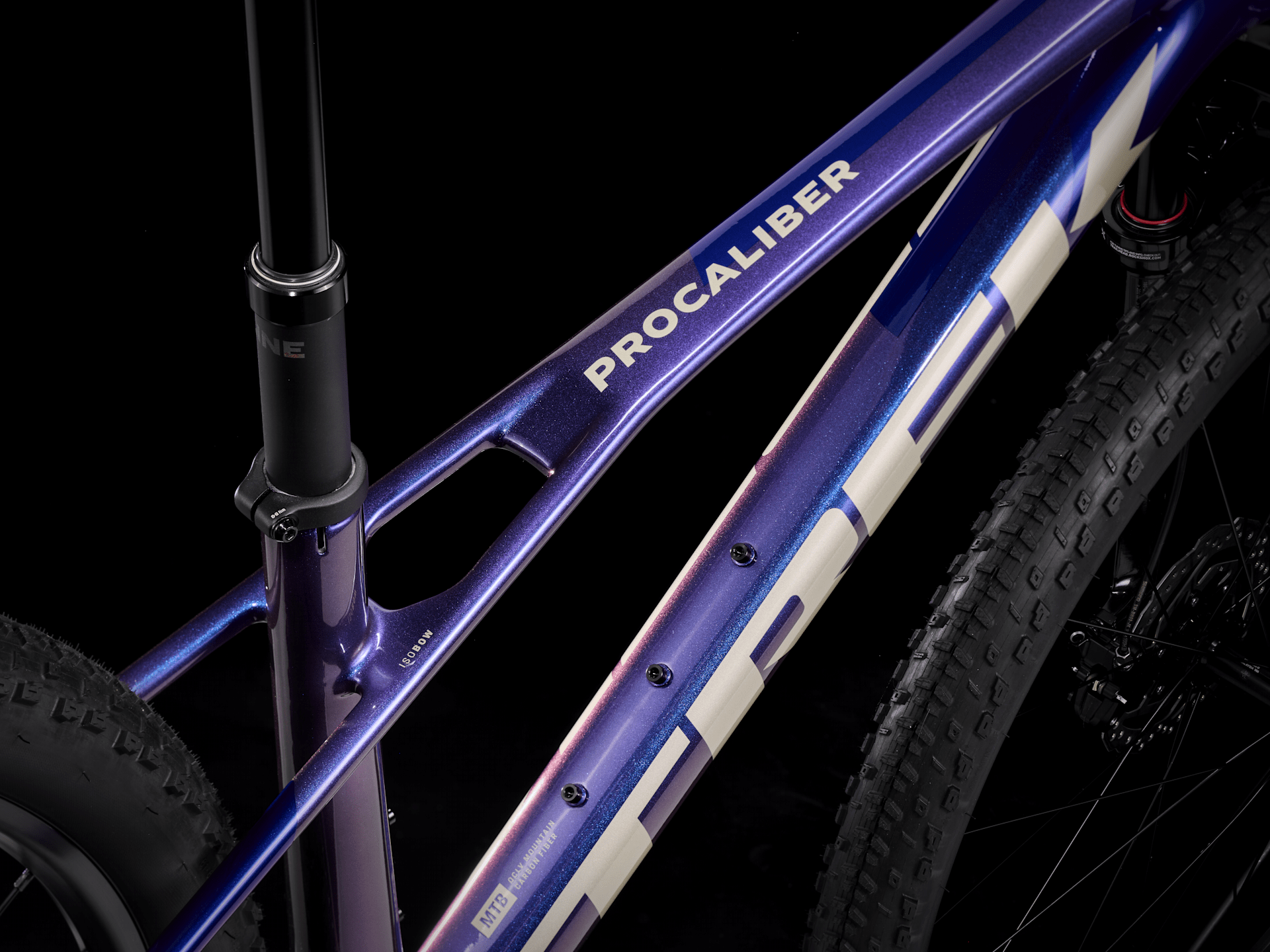

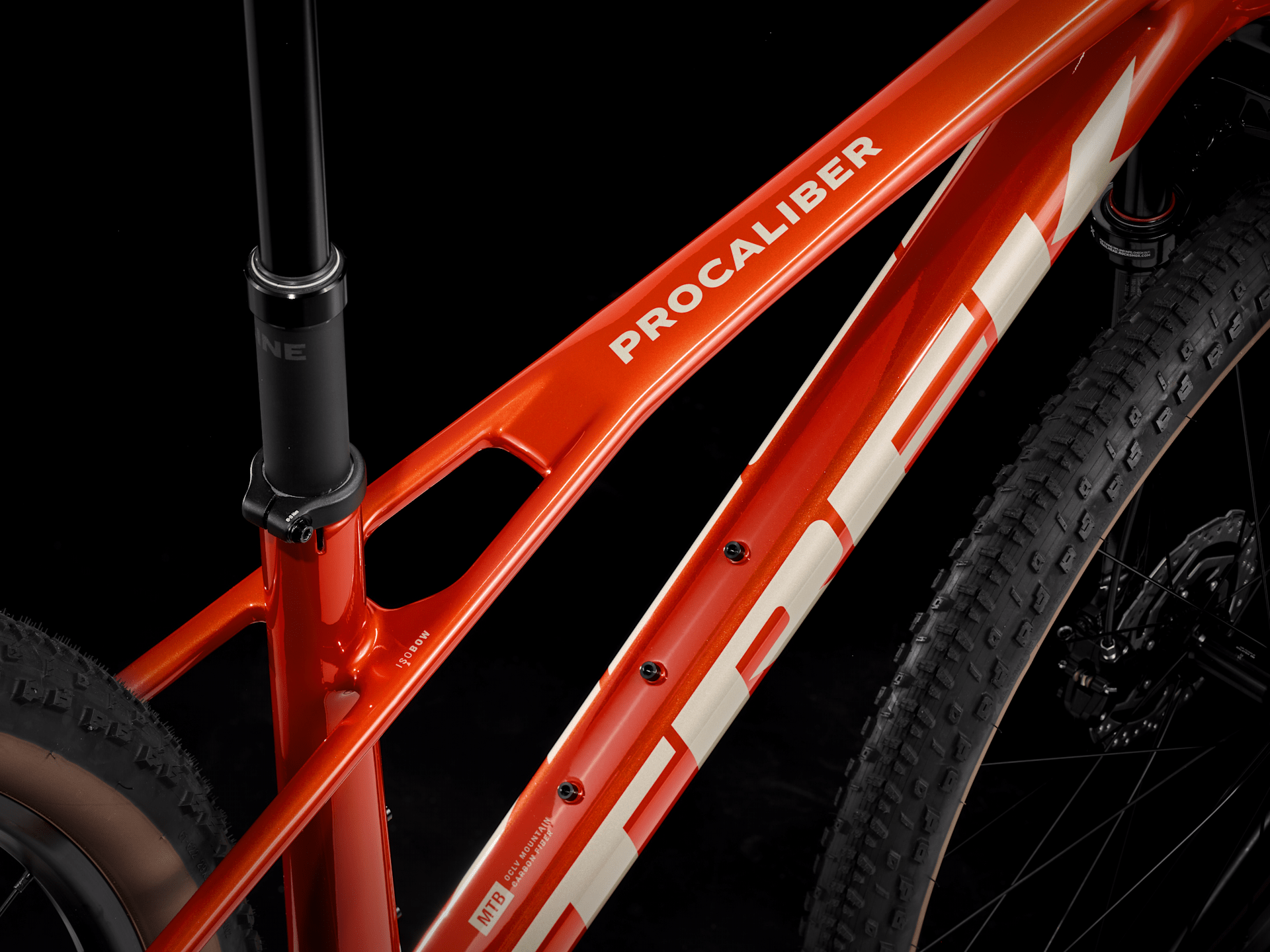

Frame	OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
Fork	RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel	120 mm

Hub front	Shimano TC500 alloy, CentreLock, 110×15 mm thru axle
Hub rear	Shimano TC500 alloy, CentreLock, 148×12 mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Rim	Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
*Tyre	Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.40″
*Tyre	Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.20″
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tyre size	Frame: 29×2.40″, Fork: See manufacturer

Shifter	Shimano Deore M6100, 12-speed
Rear derailleur	Shimano Deore M6100, long cage
*Crank	Size: S, M, ML Shimano MT512, 32T, 55 mm chain line, 170 mm
*Crank	Size: L, XL Shimano MT512, 32T, 55 mm chain line, 175 mm
Bottom bracket	Shimano MT500, 92 mm, PressFit
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
Max. chainring size	1x: 38T

Saddle	Verse Short, chromoly rails, 145 mm width
*Seatpost	Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
	Size: M, ML, L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
	Size: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
*Handlebar	Size: S Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
*Handlebar	Size: M, ML, L, XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: M, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
	Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Head set	FSA IS-2, 1-1/8″ top, 1.5″ bottom
Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: S, M, ML, L, XL Shimano RT10, CenterLock, 160 mm
*Brake rotor	Size: L, XL Shimano RT10, CenterLock, 180 mm
Brake Set	Shimano MT200 hydraulic disc
Rotor size	Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer

Tool	Bontrager Switch Lever, w/tool

Weight	M – 12.13 kg / 26.75 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
